High Clay Gold Washing Plant for Sticky Clay Alluvial Deposits

A high clay gold washing plant is a complete processing line designed to extract gold from sticky clay alluvial deposits. Unlike standard washing plants, it uses a heavy-duty rotary scrubber trommel to break down clay lumps and liberate trapped gold particles. Moreover, our plant is designed to effectively recover gold grains larger than 0.074mm, ensuring maximum recovery even in the most difficult clay-rich conditions.

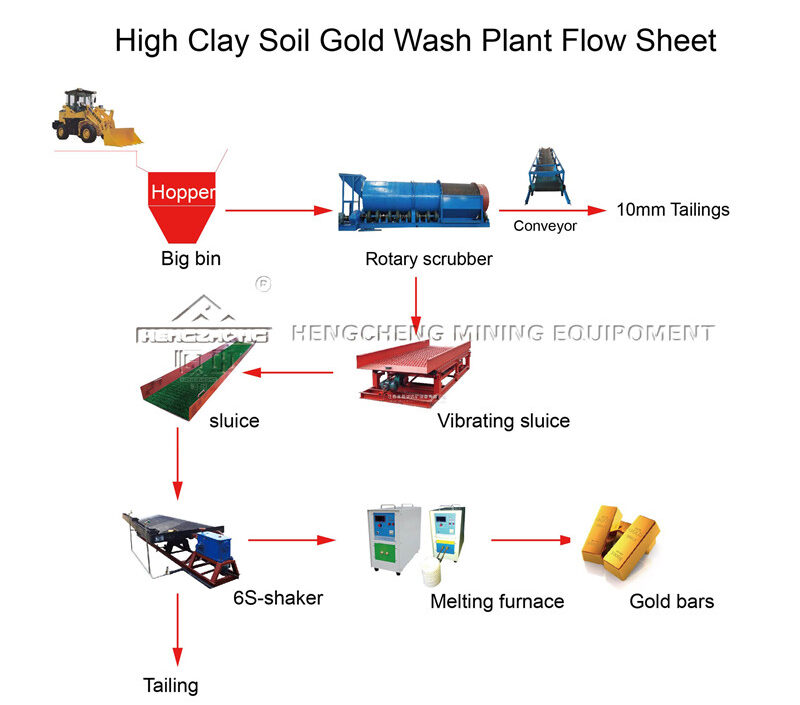

Based on our proven design, the standard high clay gold washing process follows three main stages:

• Stage 1: Washing & Screening (Scrubber Trommel): Raw ore is fed into a heavy-duty rotary scrubber trommel where high-pressure water and intense agitation break down sticky clay. The trommel screens the material, with oversized waste (>10mm) discharged as tailings, and the fine gold-bearing slurry passing through for further processing.

• Stage 2: Roughing (Vibrating Sluice Box + Regular Sluice Box): The undersize slurry flows into a combination of a vibrating sluice box and a regular sluice box for preliminary gravity separation. This stage captures the majority of heavy minerals and coarse gold.

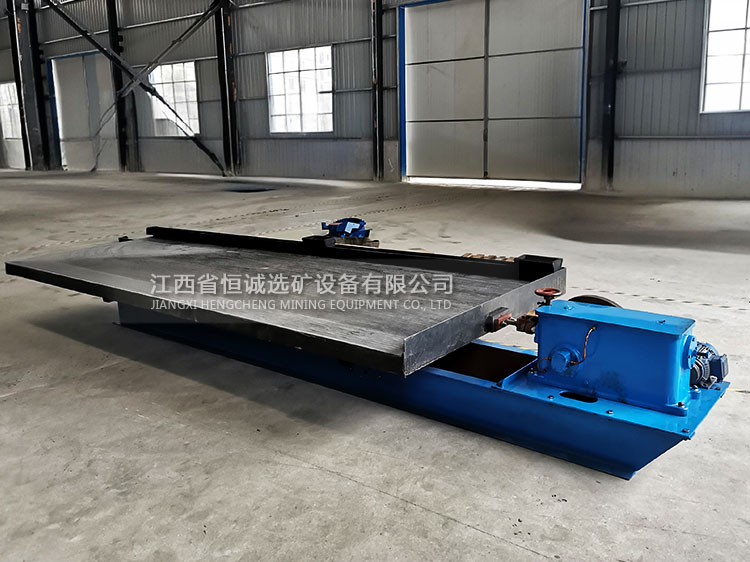

• Stage 3: Upgrading (6S Shaking Table): The rough concentrate is then upgraded on a 6S shaking table to produce a high-grade gold concentrate, which is finally smelted into gold bars in a melting furnace.

Because ore conditions vary significantly from one mine to another, we provide customized processing solutions based on your specific gold particle size.

Moreover, different gravity separation equipment performs best at different size fractions:

• Jig Machine (Jigging Machine): Primarily used for recovering coarse gold particles. It is ideal for preliminary roughing when the gold is relatively coarse and easy to liberate.

• Centrifugal Concentrator: Specifically designed for fine and ultra-fine gold particles. It efficiently recovers gold that is too small for traditional jigs.

• Vibrating Sluice Box: This equipment has the widest application range. It can effectively recover both coarse and fine gold particles. Therefore, it is often the most versatile and reliable choice for high clay alluvial projects where the gold grain size varies across different ore zones.

Our engineers will evaluate your ore characteristics and recommend the optimal combination of equipment to maximize your return on investment.

We supply the complete line of equipment for your high clay gold project, including:

• Rotary Scrubber Trommel: Heavy-duty washing unit for breaking down sticky clay.

• Vibrating Sluice Box: The most versatile gravity separation machine for both coarse and fine gold.

• Regular Sluice Box: Cost-effective roughing equipment with gold carpet.

• 6S Shaking Table: High-efficiency equipment for final concentrate upgrading.

• Jig Machine / Centrifugal Concentrator: Optional equipment selected based on your specific gold particle size.

• Melting Furnace & Auxiliary Equipment: For smelting gold bars (90%+ purity) and providing complete power/water supply.

With over 25 years of experience in mineral processing equipment manufacturing, we specialize in designing customized flow sheets for high clay alluvial deposits. Furthermore, we provide a full package of services — from engineering consultation and mineral processing experiments to on-site installation, commissioning, and personal training. Therefore, you can rely on us from the very beginning of your project to the final operation.

Q: What is the processing capacity of this high clay gold washing plant?
A: We offer customized solutions based on your specific requirements. The capacity typically ranges from 10 TPH to 200 TPH.

Q: If our raw ore has low clay content and is easy to wash, do we still need to use a scrubber trommel?
A: In this case, a standard Trommel Screen or Gold Vibrating Screen is more cost-effective and suitable for the washing and screening stage.

Q: Which gravity separation equipment is best for my ore?
A: It depends on your gold particle size. Jig machines are best for coarse gold, centrifugal concentrators for fine gold, and vibrating sluice boxes offer the widest application range for both. We provide free ore testing and customized selection advice.
