Rock Gold Gravity Processing Plant

Hengcheng offers complete solutions for Rock Gold Processing Plant. We are one of the leading project suppliers for Rock Gold Processing Equipment and we work closely with our customers to fulfill their specific needs for customized package solution. Specialized in the fabrication of these machines for 15+ years and this enables us to be in a leading position in the field of Rock Gold Processing/Mining.

General Rock Gold Gravity Processing Plant flow sheet design:

above rock gold processing plant design could have effectively recover >70% of gold.  And the tailing material could be stocked up for future cyanide leaching processing (gold CIL plant).

Previous Rock gold processing plant working video

Scope of Supply

We can supply the whole line of Rock gold gravity processing plant, including:

1. crushing system (jaw crusher/hammer crusher/cone crusher)

2. grinding and classification system (ball mill / spiral classifier/ hydrocyclone)

3. gold concentrator / centrifuge concentrator

4. shaking table

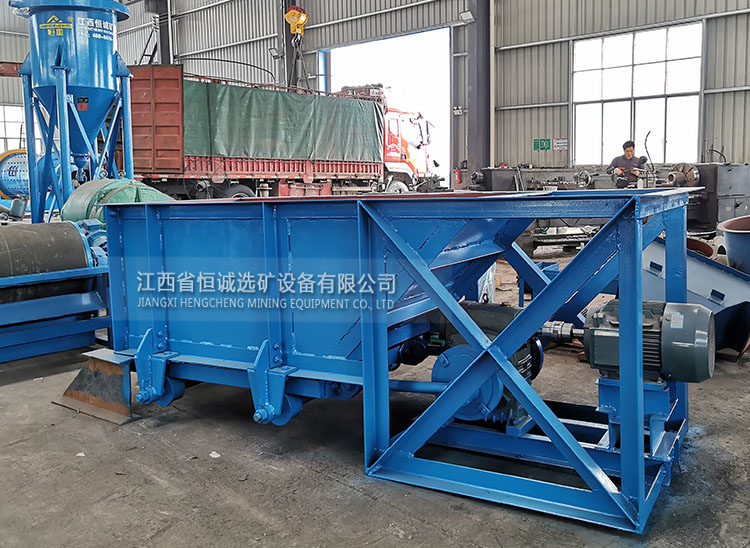

5. feeder & conveyors

6. melting furnace

7. water pump & diesel generator

8. electric control panel & cables

9. steel plates/plastic pipes,etc

General Rock Gold Processing Plant Layout

Vary Processing Capacities Machinery List

 ITEMMODELQTYMOTOR (KW)TOTAL WATER (m3/h)
 1-2.0TPHSmall hammer crusher/ PC300*500 1 set 11.07-9.0
Ball mill/ GM09211 set22.0
Spiral classifier / FLG-51 set1.1
6s shaking table2 sets1.1*2
 5.0TPHJaw crusher / PE250*4001 set15.018-22.0
Impact hammer crusher / PWC400*6001 set11.0
Ball mill / GM15301 set80.0
Spiral classifier / FLG-101 set5.5
Gold concentrator / STLB-602 sets4.0
6s shaking table1 set1.1
10.0TPHJaw crusher / PE400*6001 set30.0 43-48.0
Impact hammer crusher / PWC800*6001 set30.0
Ball mill /GM18361 set155.0
Spiral classifier / FLG-121 set7.5+2.2
Gold concentrator / STLB-602 sets4.0
6s shaking table1 set1.1

Previous Rock Gold Processing Plant Projects Show:

Detailed Equips Information

Machine PicturesBrief Description
1.Item: Jaw crusher

2.Brand: HENGCHENG

3.Function: for first primary crushing, and reduce stone size to smaller (like 30-50mm)

4.Structure: cast iron outframe + high-manganese steel jaw plates

1.Item: Impact hammer crusher

2.Brand: HENGCHENG

3.Function: for secondary stage crushing to further reduce rock size smaller (like 5-10mm)

4.Structure: cast iron outframe + protection steel liner + steel hammers

 1. Item: Small hammer crusher

2. Brand: HENGCHENG

3.Function: could crush stones into small powder size directly in small mining plant (like <3.0mm)

4. Structure: steel welded outframe + steel hammers

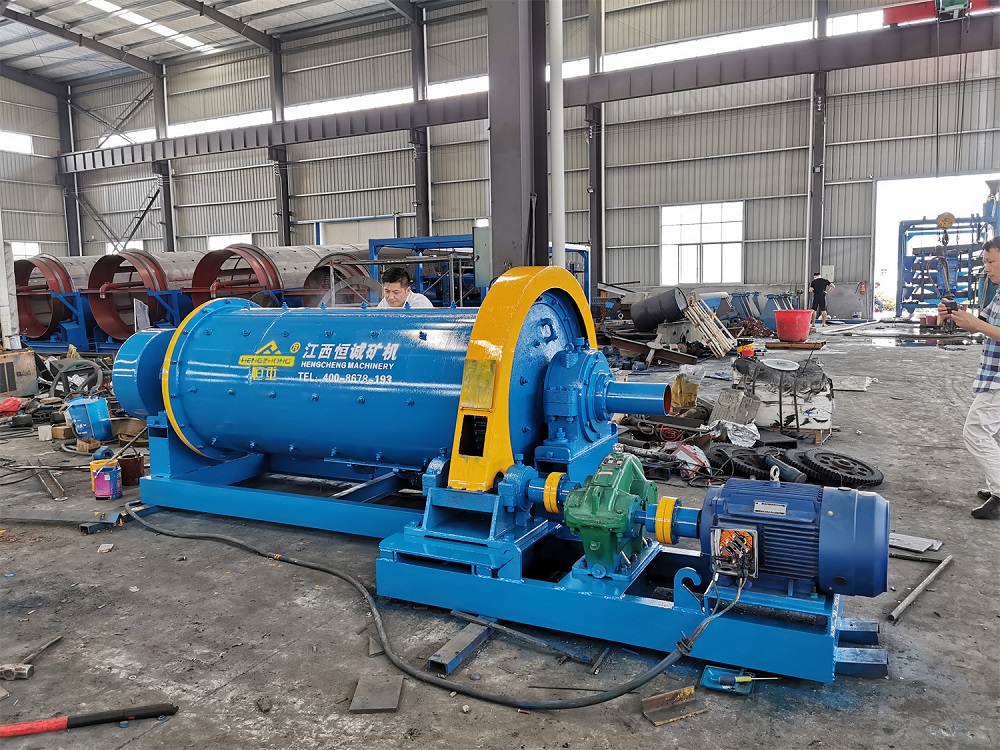

 1. Item: wet type grinding Ball Mill

2.Brand: HENGCHENG

3.Function: to grinding ore into about 200mesh, and liberate out free gold contained by quartz.

4.Structure: steel plate welded outframe (20mm) + steel liner + steel balls

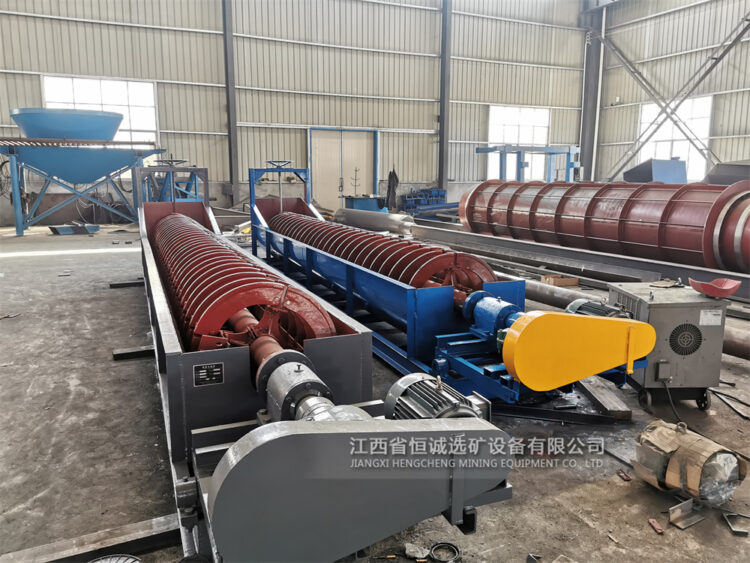

 1.Item: Spiral classifier

2.Brand: HENGCHENG

3.Function: to form a close-circuite with ball mill for grinding, and control the mill output size;

4.Structure: steel welded outframe

1.Item: Gold concentrator/centrifuge concentrator

2.Brand: HENGCHENG

3.Function: to extract useful heavy gravity gold&other mineral from ore slurry by centrifugal force, and get high grade gold concentrate ore.

4.Structure: steel welded out-frame + stainless steel inner cone bowl.

 1.Item: 6s shaking table (4500mm)

2.Brand: HENGCHENG

3.Function: for final separation & extraction of gold, to get high grade gold-bearing concentrate ore in small mass. its effective gold recovery down size could reach -74micron.

4.Structure: FRP deck + channel steel frame

 1.Item: Conveyor

2.Brand: HENGCHENG

3.Function: to transport the rock ore between machines

4.Structure: rubber belt + steel outframe

 1.Item: water pump

2.Brand: HENGCHENG

3.Function: supply water to machines

 1.Item: Gold induction furnace

2.Brand: HENGCHENG

3.Function: to melt the gold concentrate, and get pure gold bar (90%+ grade);

 1.Item: Brand Diesel generator

2.Brand: YUCHAI / CUMMINS,etc

3.Function: supply electric power for all machine motors

4.Voltage: 380v/50hz/3phase

 1.Item: Electric control panel

2.Brand: OEM

3.Function: to connect electricity source and all machines, and control all machines start&stop.

More than a rock gold processing plant supplier:

At Hengcheng, we provide more than just gold gravity processing machines, but constantly strive to assist you in achieving overall business excellence. This is why when you partner with Hengcheng, you don’t just get a diversified product offering, but form a relationship based on product refinement, a true understanding of gold process flow sheets and field service and maintenance —ensuring that together we will create a solution that is suited specifically to your individual needs and that will optimize your process and lower your overall operating costs.
