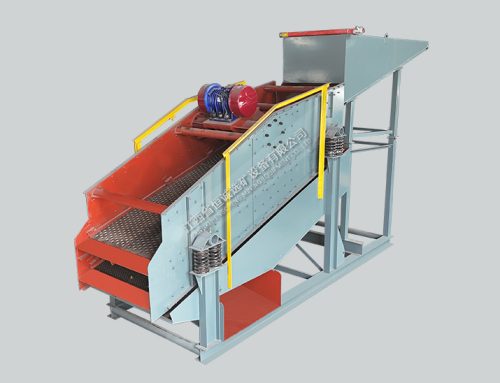

Vibrating Screen
Vibrating screen vibrates in a circle. It is a kind of effective vibrating screen with multi-layers. Our circular vibrating screen employs cylindrical eccentric shaft vibration exciter and partial block to help to adjust amplitude.
Category: Washing&screening equipment
Machine Details Show
Description & Technical Data
It features reliable structure, powerful exciter, high screening efficiency, low noise, simple maintenance, durable frame, and safe operation.
Features
1.Simple and reasonable structure
2.Full welding connection,more durable
3.Block-eccentric,more powerful
4.Low power consumption
5.Large capacity,small amplitude,high frequency,large angle
6.Standard accessories,easy maintenance
Technical Data
| Model | Screen Layer | Max Feed size | Sieve size | capacity (t/h) | Frequency (shift/min) | Angle(°) | Power(kw) | Dimension (L*W*H) | Weight(T) |
|---|---|---|---|---|---|---|---|---|---|
| SZZ600×1200 | 1 | 40 | 1-25 | 3-20 | 1000 | 15-25 | 2.2 | 1370×890×330 | 0.34 |
| SZZ2600×1200 | 2 | 40 | 1-25 | 3-20 | 1000 | 15-25 | 2.2 | 1370×890×430 | 0.36 |
| SZZ900×1800 | 1 | 40 | 1-25 | 5-25 | 1000 | 15-25 | 2.2 | 2150×1358×575 | 0.55 |
| SZZ2900×1800 | 2 | 40 | 1-25 | 5-30 | 1000 | 15-25 | 3.0 | 2489×1358×770 | 0.62 |
| SZZ1250×2500 | 1 | 100 | 1-40 | 10-100 | 850 | 15-20 | 5.5 | 2762×1714×680 | 1.10 |
| SZZ21250×2500 | 2 | 150 | 1-40 | 10-120 | 850 | 15-20 | 5.5 | 2702×1714×740 | 1.30 |
| SZZ1500×3000 | 1 | 150 | 1-40 | 15-150 | 800 | 15-25 | 7.5 | 3320×1449×787 | 2.10 |
| SZZ21500×6000 | 2 | 150 | 1-40 | 20-220 | 700 | 15-25 | 11.0 | 6500x1900x1000 | 3.80 |
