Gold Vibrating Screen
The Gold Vibrating Screen is a high-efficiency screening and beneficiation solution. This equipment integrates screening and gold recovery functions into a single compact system, delivering exceptional performance for alluvial gold processing and similar applications.
Designed with a modular assembly approach, the unit offers simplified operation, low maintenance costs, excellent mobility, and wide adaptability. When combined with auxiliary equipment such as vibrating sluice box and sluice box with gold mat/carpet, the system achieves a gold recovery rate of 70–85%, making it an ideal choice for small to medium-scale mining operations.
Why Choose the Gold Vibrating Screen?
First of all, this integrated unit combines screening and gold recovery into a single compact system, which significantly reduces your equipment footprint and operational complexity. Moreover, its modular assembly design allows for quick on-site installation and easy relocation between different mining sites. In addition, the unit is compatible with various downstream equipment, such as vibrating sluice boxes and carpet sluice boxes, to further enhance gold recovery rates.
Working Principle of Gold Vibrating Screen
The unit operates on a vibration-based screening mechanism:
-
A vibration motor drives the screen box to produce periodic reciprocating vibrations.
-
Under the combined action of vibration and gravity, the feed material is stratified and separated:
-
Coarse materials are retained on the upper screen layers and discharged at the tail end.
-
Fine materials pass through the screen apertures to lower layers or directly to downstream processing equipment.
-
-
The multi-deck screen design (standard 2-layer) allows for adjustable screening precision by changing screen mesh sizes and vibration frequency parameters, catering to different ore types and process requirements.

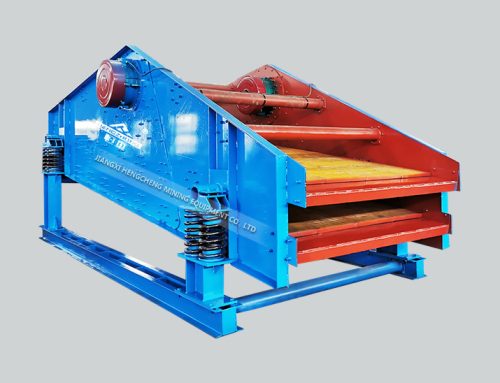

Gold Vibrating Screen Details
Gold Vibrating Screen Parameters
Model 1545-2
| Parameter | Specification |
|---|---|
| Layers | 2 |
| Motor Power | 9 kW |
| Side Plate | 12+12 mm (riveted construction) |
| Hopper Dimensions (L×W×H) | 2.3 m × 1.4 m × 1.8 m |
| Screen Mesh (Steel Punch Plate) | 1st Layer: 16 mm thick, 20 mm holes 2nd Layer: 10 mm thick, 6 mm holes |
| Feet Material | 20H steel |
| Total Weight | 10 tons |
| Processing Capacity | 100–120 tons/hour |
| Feed Size | <100 mm |
| Screening Size Range | 0.5–50 mm |
Model 1850-2
| Parameter | Specification |
|---|---|
| Layers | 2 |
| Motor Power | 11 kW |
| Side Plate | 12+12 mm (riveted construction) |
| Hopper Dimensions (L×W×H) | 2.3 m × 1.7 m × 2.0 m |
| Screen Mesh (Steel Punch Plate) | 1st Layer: 16 mm thick, 40 mm holes 2nd Layer: 10 mm thick, 10 mm holes |
| Feet Specifications | 120×120×6 mm (thickness) |
| Total Weight | 12.3 tons |
| Processing Capacity | 200 tons/hour |
| Feed Size | <100 mm |
| Screening Size Range | 0.5–50 mm |
Reliable Performance You Can Trust
Consequently, with its robust construction, high screening capacity, and compatibility with gravity concentrators, this unit offers a cost-effective and reliable pathway to maximize your gold recovery. Therefore, whether you are starting a new project or expanding an existing one, the Vibrating Screen & Gold Integrated Unit is an ideal choice for your alluvial gold processing needs.
Frequently Asked Questions
Q: What is the processing capacity of this unit?
A: The 1545-2 model can process 100–120 tons per hour, while the 1850-2 model can process up to 200 tons per hour.
Q: What is the gold recovery rate?
A: When combined with a vibrating sluice box and carpet sluice box, the system achieves a gold recovery rate of 70–85%.
Q: Can I customize the screen mesh size?
A: Yes, the multi-deck screen design allows for adjustable screening precision by changing screen mesh sizes and vibration frequency parameters.
