Gold Centrifugal Concentrator

Gold centrifugal Concentrator is a kind of gravity separator. It can be used not only for placer gold mining but also for rock gold ore.

The application shows that the recovery can be as high as 99%, especially for the case of recovering the natural gold in lode ore with 65% of the ore having a milling size of -0. 074mm, the recovery for the natural gold is expected up to 98%. For those natural gold of 0.004mm in particle size, the recovery is 97%. The cleaning-up cycle is 1~4 hour, and the upgrade ratio is up to 1,000 times. This equipment is patented in China.

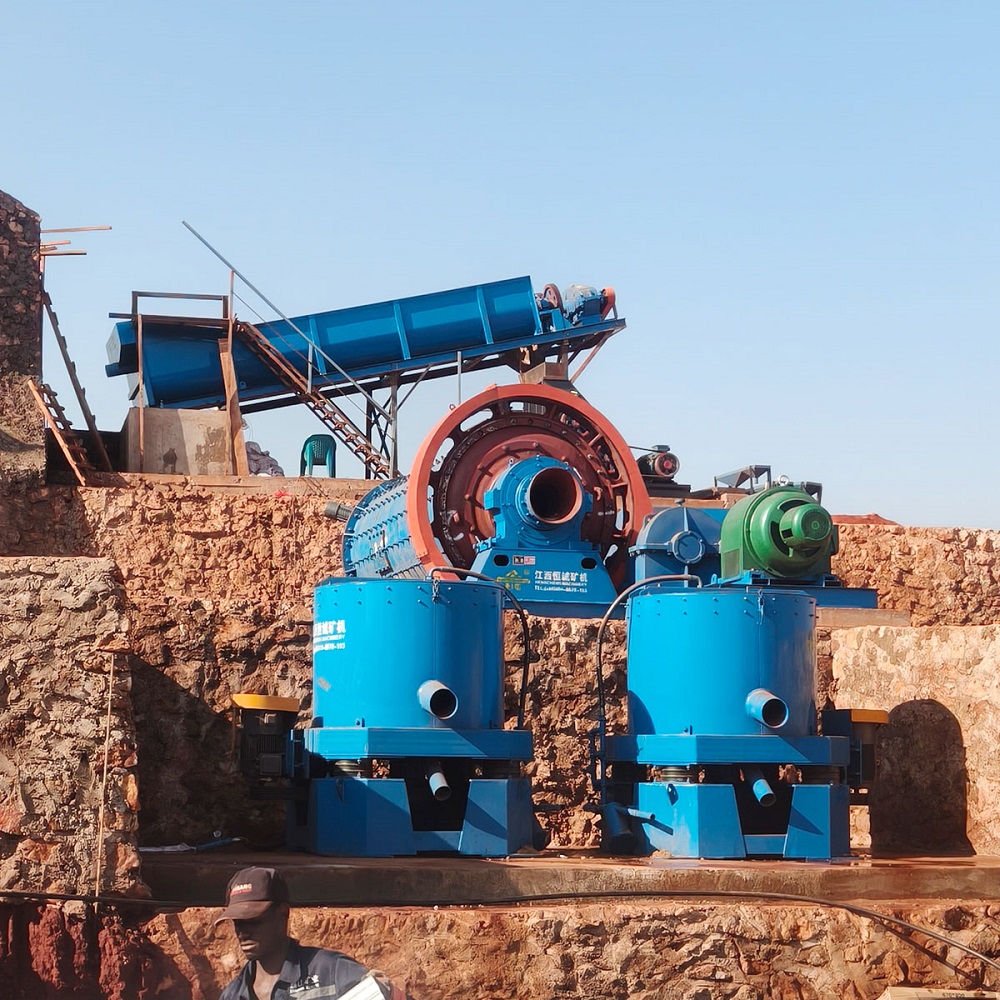

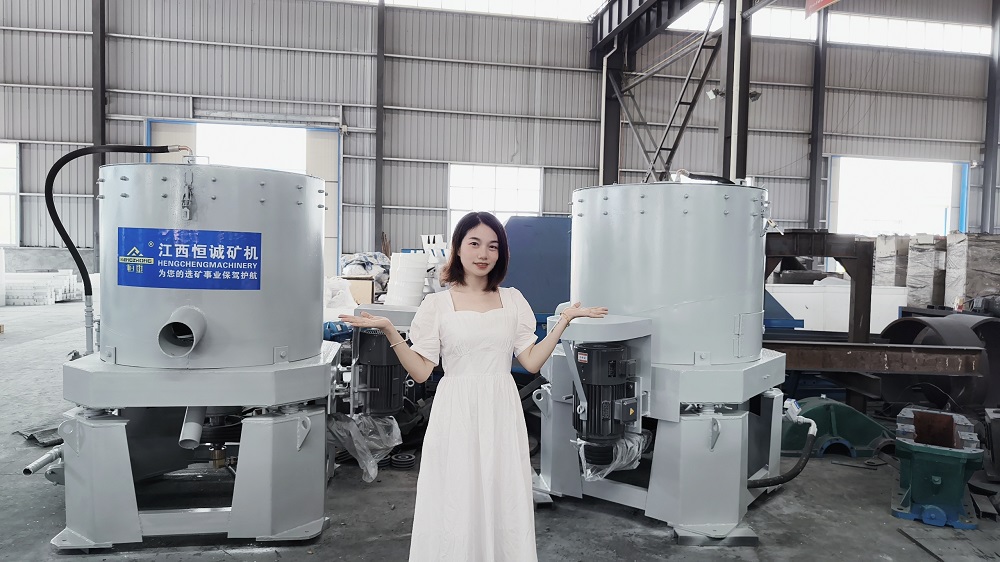

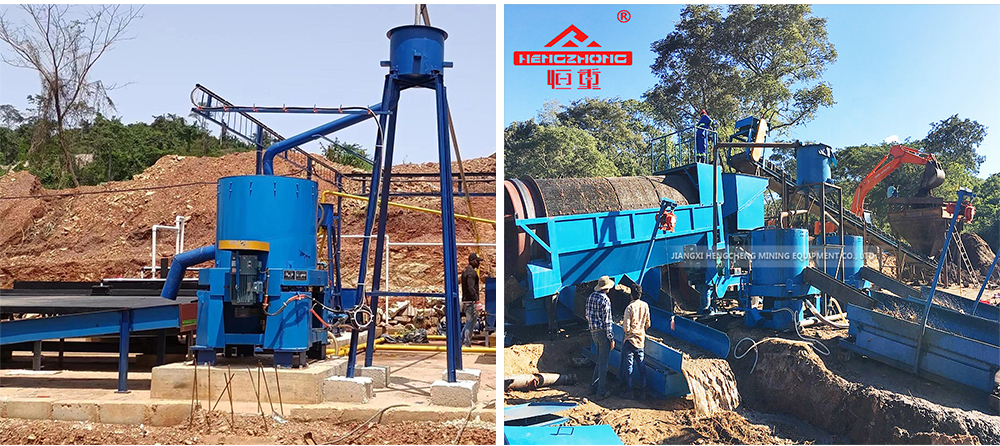

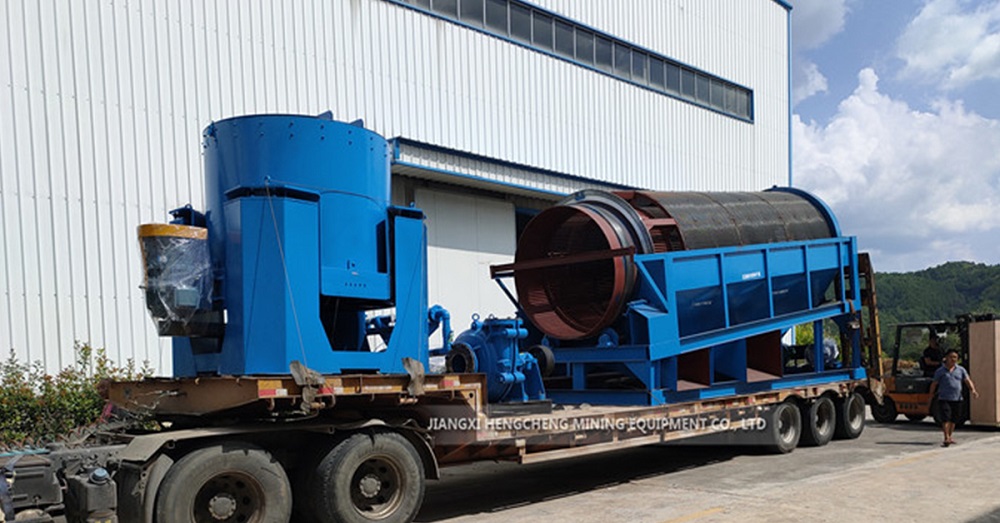

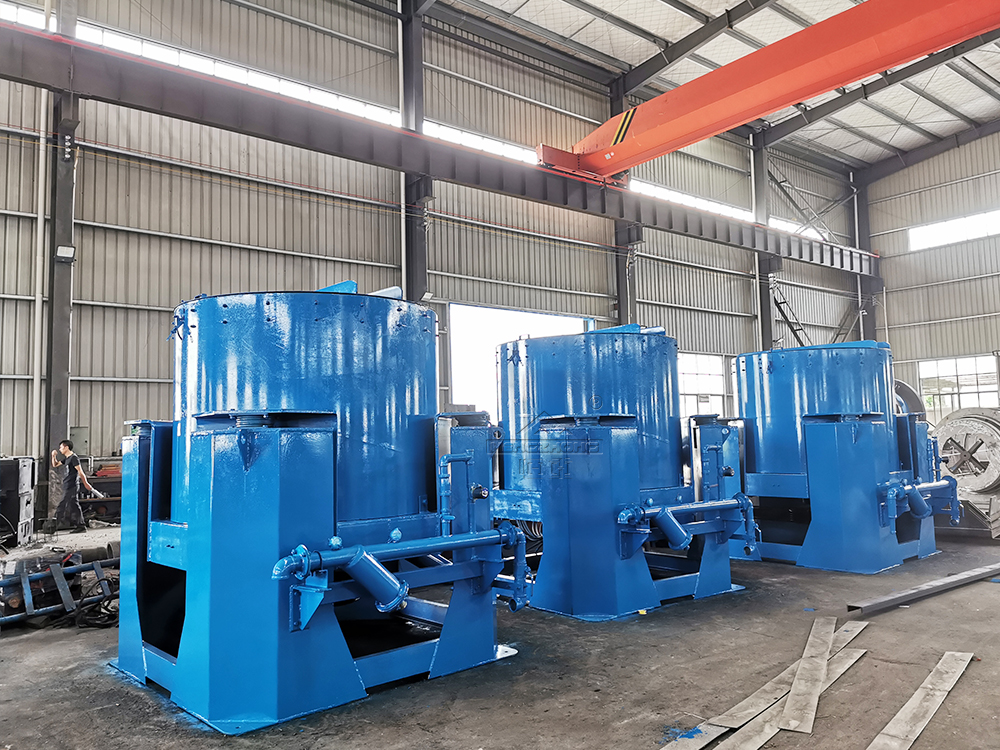

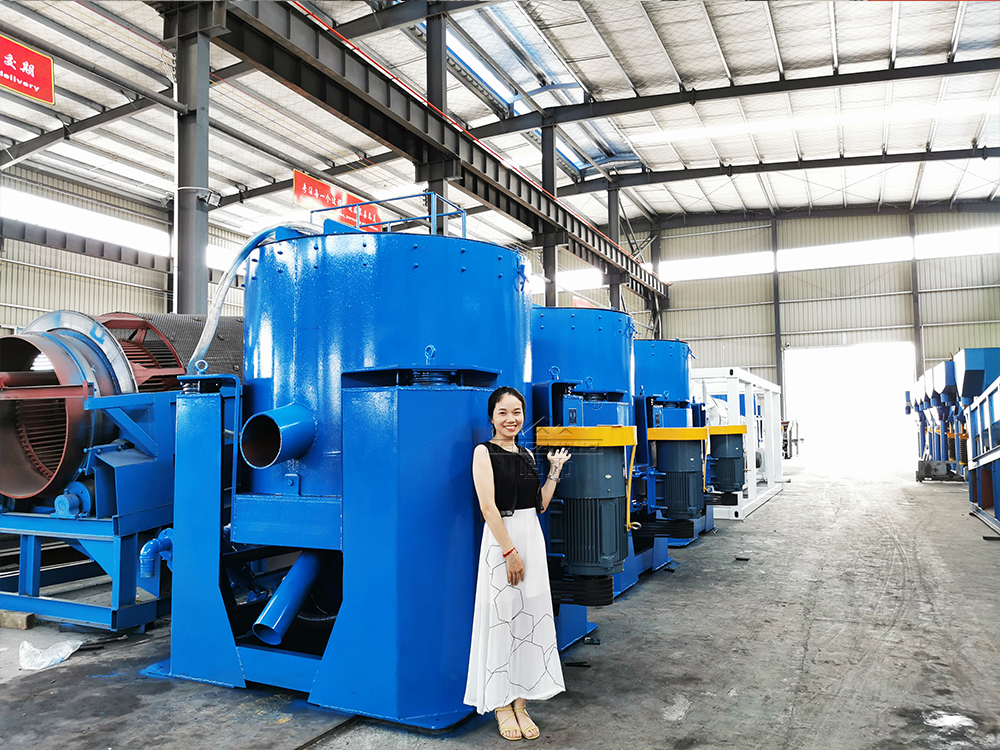

Centrifugal concentrator pictures

Centrifugal Concentrator Advantages

Main Features

  1. High recovery rate: Through our test, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 2 mm.
  2. Easy to install: Only a small leveled place is required. It’s a full-line machine, before starting it, we only need to connect the water pump and power.
  3. Easy to adjust: There are only 2 factors that will affect the recovery result, which is water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.
  4. No pollution: This machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.
  5. Easy to operate: After finishing the water pressure and feeding size adjustment, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine)

Technical  Parameters

ModelSTLB20STLB30STLB60STLB80STLB100
 Capacity(t/h) 0-0.6 2-3 8-12 35-45 70-80
 Fluidization water(m3/h) 2-3 3-5 7-10 30-36  55-80
 Slurry Water(m3/h) 1.5-4 5-7 8-12  35-50  70-120
 Feeding Density(%) 0-50 0-50 0-50 0-50 0-50
 Feeding size(mm) 0-3 0-3 0-5 0-5 0-5
Concentration

Cleaning Up Cycle

Vein gold 1-3H /

Placer gold 2-6H

Vein gold 1-3H /

Placer gold 2-6H

Vein gold 1-3H /

Placer gold 2-6H

Vein gold 1-3H /

Placer gold 2-6H

Vein gold 1-3H /

Placer gold 2-6H

 Concentrate weight(kg) 2.0 10-20 30-40 60-70 80-90
 Power(Kw) 0.75 1.5 4.0 11.0 22.0
 weight(Kgs) 205 400 1000 1500 2000
 Dimension (mm) 914*700*900 1180*1140*1250 1970*1670*1750 2300*1800*2200 2400*2000*2300
